HGM100 · 2024

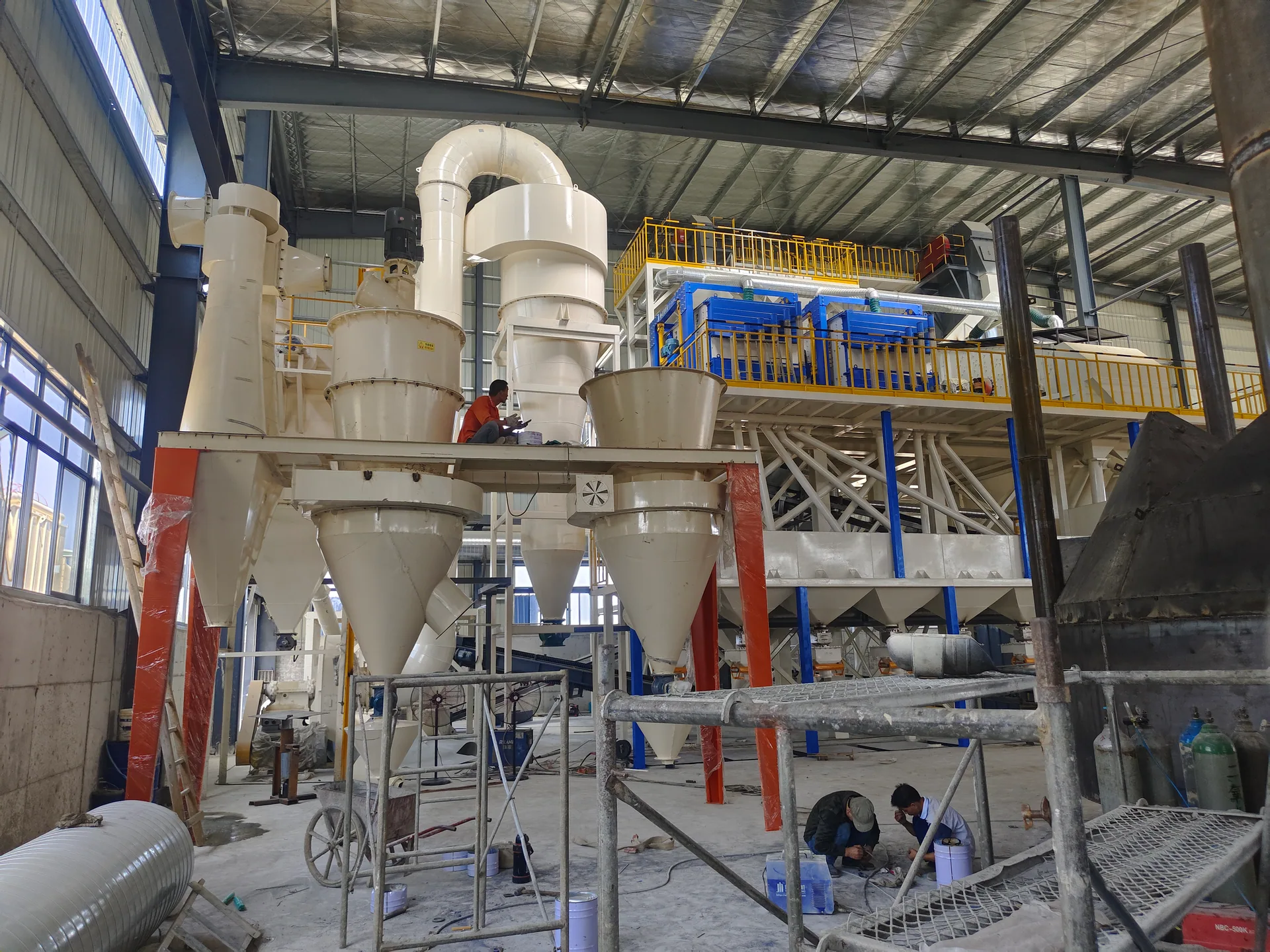

Integrated line for high-whiteness mineral filler
Grinding, classification and pulse collection arranged for stable fine powder output.
Discuss a similar line ↗
ENGINEERED FOR FINER POWDER
Ultrafine grinding,
made measurable.
HGM three-ring and four-ring medium-speed mills turn non-metallic minerals into consistent 150–3000 mesh powder, with an integrated classifier, negative-pressure dust control and a production line designed around your material.
01 / 06Henan, China · Serving 20+ countries
Scroll to explore
150–3000mesh adjustable fineness
0.2–20t/h reference output range
30%lower energy use vs. traditional routes*
100+non-metallic minerals
THE INNOVATE STANDARD
From feed testing to commissioning, INNOVATE builds complete powder lines around the product you need to sell — not just the machine you need to ship.
Meet the company ↗ COMPANY PROFILE
Built for the powder
behind your product.
Henan Innovate Intelligent Equipment Co., Ltd. is a specialist manufacturer focused on ultra-fine grinding, powder classification and complete non-metallic mineral processing lines. A practical engineering team, a modern production base and a testing-first workflow help customers move from sample to stable production with fewer unknowns.
20+ years of focused R&D
One partner from raw material to finished powder.
INNOVATE combines process design, equipment manufacturing, electrical control and after-sales support under one roof. Every project starts with material characteristics, target fineness and required capacity. The result is a line that is easier to operate, easier to maintain and ready to scale.
✓
Test before you investMaterial trials and particle-size verification guide the final configuration.
✓
Quality at every hand-offIncoming material, machining, assembly and factory testing are checked before delivery.
✓
Service that stays closeInstallation guidance, operator training and responsive parts support worldwide.

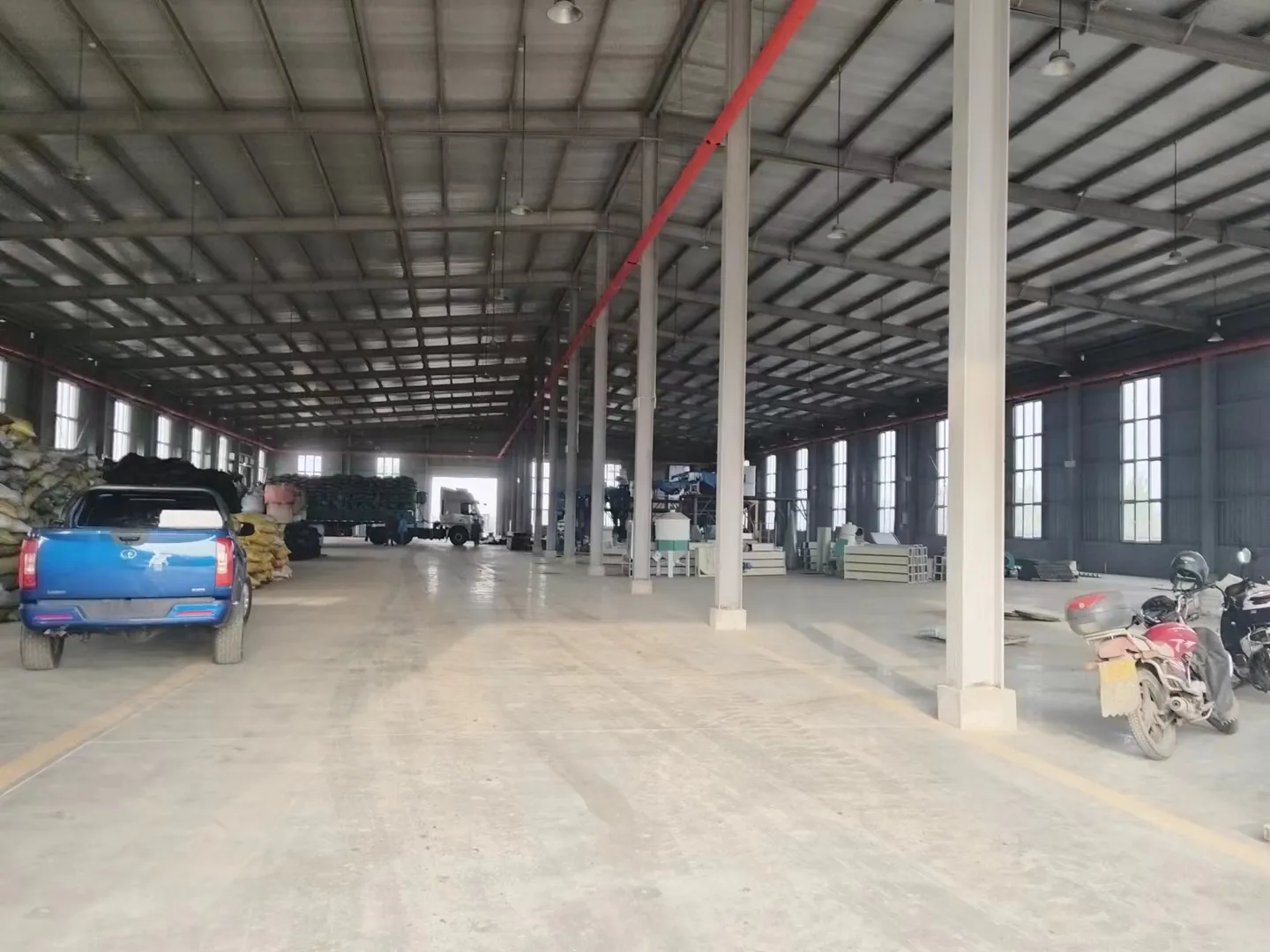

01Production baseAssembly, testing and dispatch in Henan
Credentials & quality systemsDocumentation available on request
01High-tech enterpriseInnovation-driven manufacturing
02Invention patentsProtected mill and process improvements
03CE complianceExport-ready equipment documentation
04ISO systemsConsistent quality management workflow

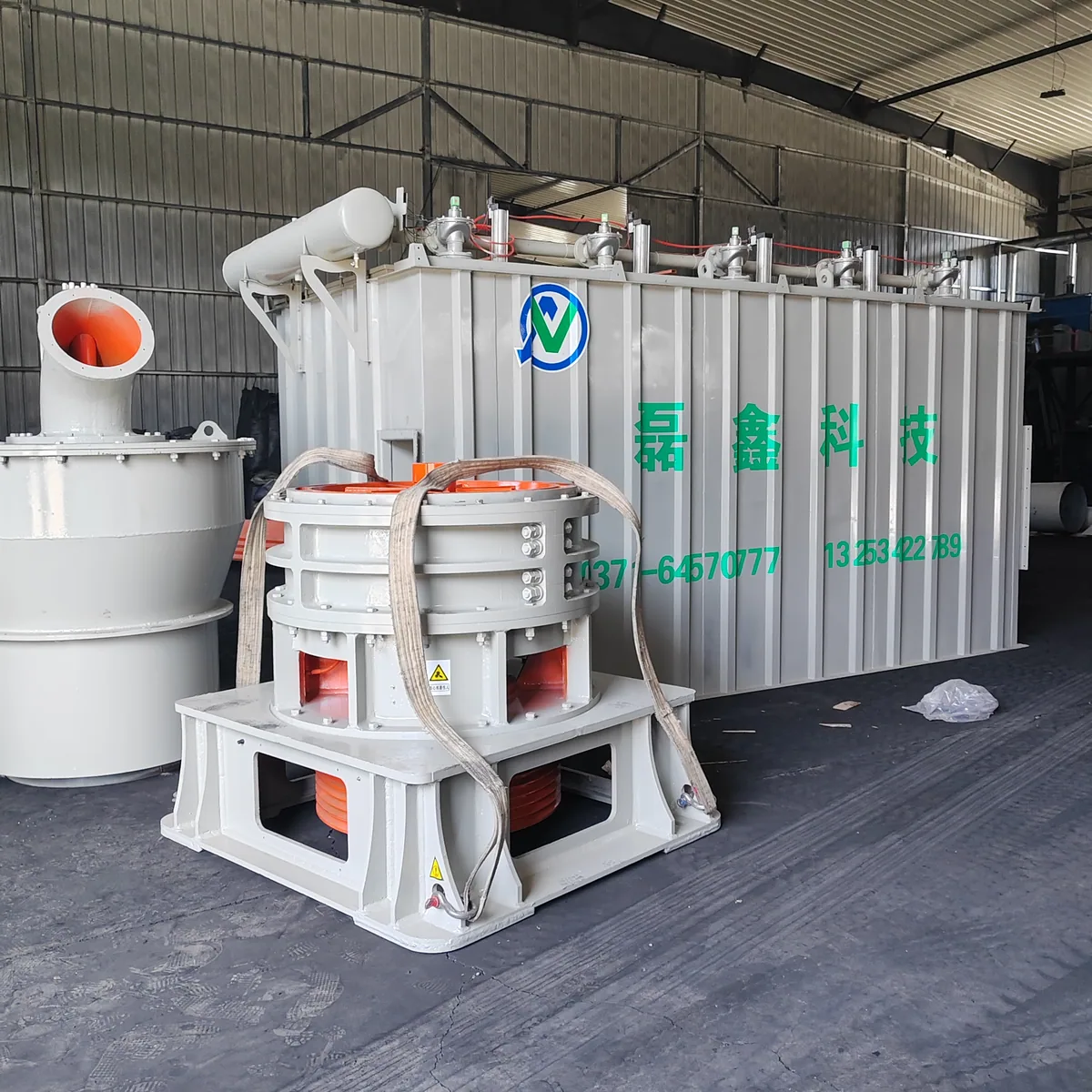

HOW THE HGM MILL WORKS
Three stages. One controlled air circuit.
The HGM mill combines layered grinding pressure with dynamic classification. Coarse particles return to the grinding zone; only qualified powder leaves the system. That closed loop is the key to a narrow, repeatable product size.
01Layered grinding rings
02Dynamic classifier
03Pulse dust collection
01
Feed & distribute

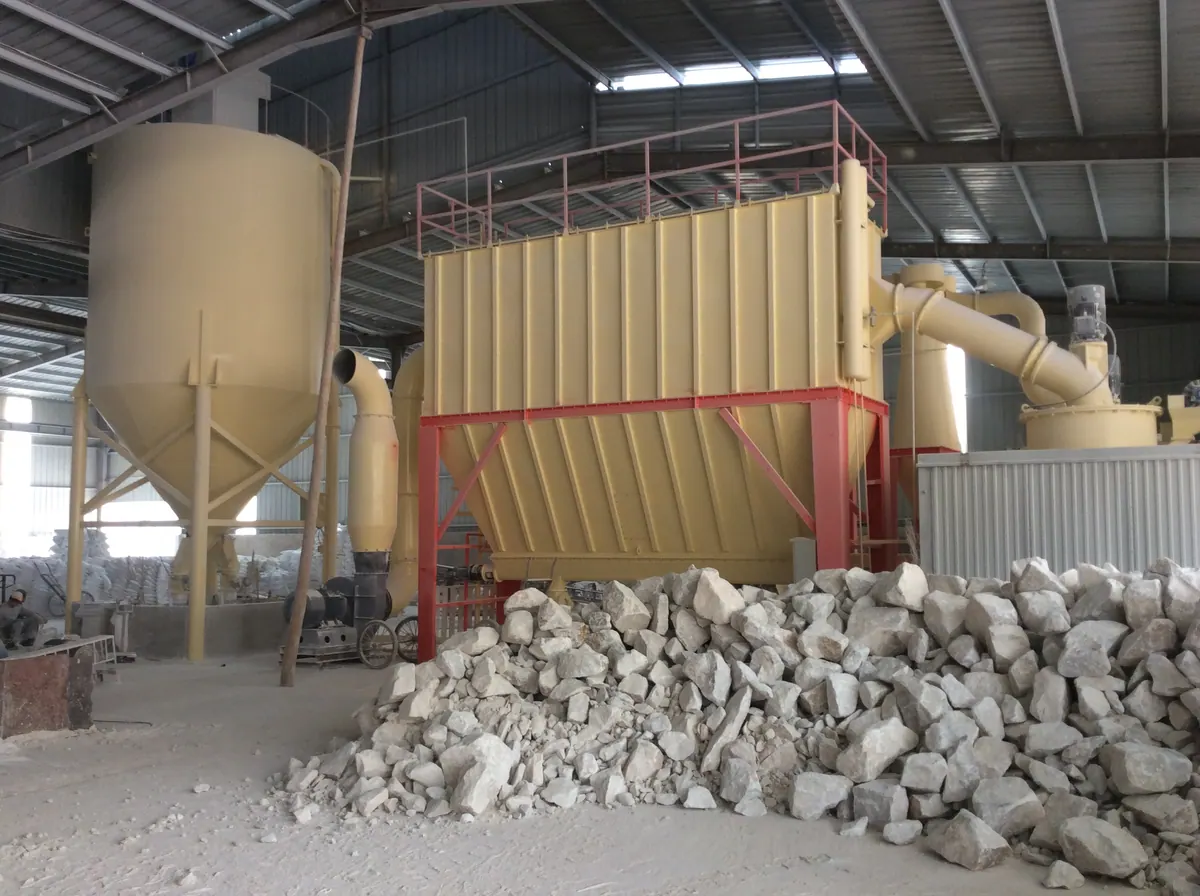

Pre-crushed material enters through the skirt-belt feeder and is evenly distributed to the upper rotary table.
02
Grind & recirculate
Three or four layers of rollers orbit and rotate in the grinding ring raceways. Oversize is returned for another pass.
03
Classify & collect
A high-pressure centrifugal fan carries qualified powder to the classifier and pulse bag filter. Clean air exits through the silencer.
Design intent
Easy-to-understand operation, sealed negative pressure, fewer moving wear points and fast access for routine service.
Higher output per kW
Reference output can be more than twice a traditional Raymond route at similar fineness and motor power.
Finer, wider adjustment
Set the classifier for a product range from 150 to 3000 mesh, with D97 ≤ 5 μm in suitable applications.
Wear life that pays back
Forged wear-resistant rollers and rings support a 2–5 year reference life when processing calcium carbonate and calcite.
Clean, quiet production
Pulse filtration, silencing and sealed negative pressure help reduce dust escape and workshop noise.
APPLICATIONS & MATERIALS
One platform.
Many powder markets.
Choose the product first, then let INNOVATE match the grinding pressure, classifier speed, dust collection and packing route. The HGM platform is suited to non-flammable, brittle materials below Mohs hardness 6.
Need a material not listed?
Send us a sample or a target specification. Our engineers will confirm grindability, fineness and a practical line layout.
Ask for a test ↗
Used inPaint & coatingsPlasticsRubber & tyreCeramicsConstruction materialsCosmeticsWire & cable
SEE IT IN PRODUCTION
From commissioning to a clean finished powder.

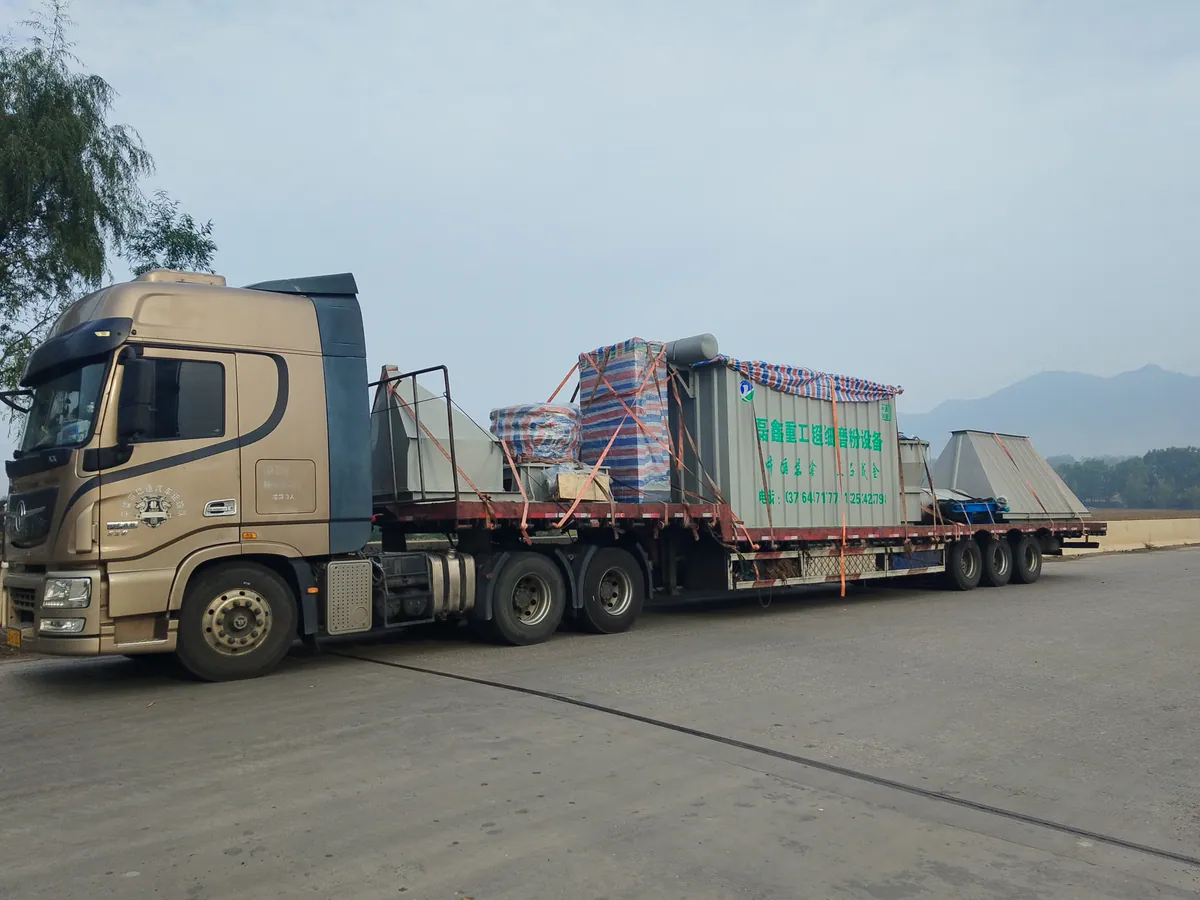

Watch a short view of INNOVATE equipment in operation, then explore the project gallery for installation details, dispatch and on-site commissioning.
PLAY FIELD FOOTAGE ▶
MODELS & SPECIFICATIONS
Size the mill
to the powder.
Reference values from the INNOVATE HGM product guide. Final selection depends on feed size, moisture, hardness, target D97 and operating hours. Use the table as a starting point for a technical conversation.
| Model | Avg. working diameter | Rings / rollers | Spindle speed | Feed size | Finished product | Output | Total power |
|---|---|---|---|---|---|---|---|
| HGM60Compact line | 600 mm | 3 / 12 | 250–280 rpm | ≤ 20 mm | 150–3000 mesh 106–4.1 μm | 0.2–3 t/h | 98 kW |
| HGM80Mid-size line | 800 mm | 3 / 21 | 230–240 rpm | ≤ 20 mm | 150–3000 mesh 106–4.1 μm | 0.5–4.5 t/h | 144 kW |
| HGM100Most requested | 1000 mm | 4 / 28 | 180–200 rpm | ≤ 20 mm | 150–3000 mesh 106–4.1 μm | 1–9 t/h | 245.8 kW |
| HGM125High-capacity line | 1250 mm | 4 / 32 | 135–155 rpm | ≤ 20 mm | 150–3000 mesh 106–4.1 μm | 2.8–20 t/h | 416.2 kW |
* Reference data only. Product fineness and output are material-dependent.Get a configured quote ↗
WHY ULTRAFINE
When your market needs more than
a coarse powder, HGM is the clear step up.
Traditional route
Raymond mill / ball mill
- Typically stops around 325 mesh for a single coarse grinding stage
- Ball mill circuits need more space, media and classification steps
- Higher transfer losses and more manual dust points
- Wear and maintenance can be spread across more equipment
VSChoose by
total cost per ton
total cost per ton
INNOVATE HGM route
Three-ring / four-ring ultrafine mill
- 150–3000 mesh adjustable fineness in a closed classification loop
- Integrated grinding, classification, collection and negative pressure
- Higher output at comparable power; lower energy use in the guide reference
- Forged wear parts, simple access and a line designed for your material

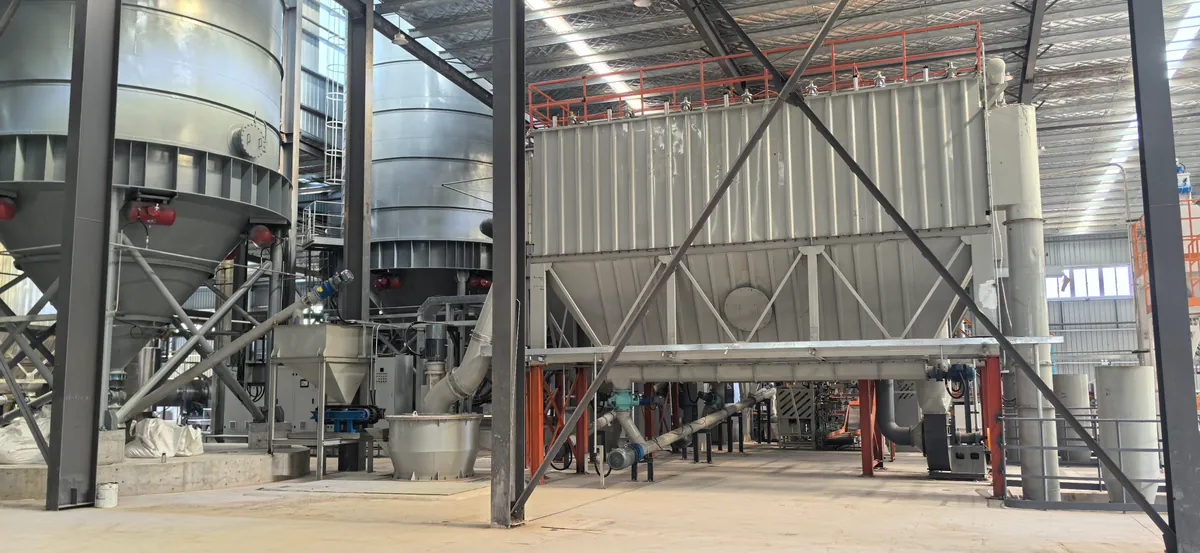

ENGINEERED IN THE FIELD
Projects that look
like your next line.
From a single HGM100 in Henan to high-capacity installations in Xinjiang, Uzbekistan and Pakistan, INNOVATE supports the details that make a powder plant run: foundations, air routes, packing and operator hand-off.
Selected destinationsHenanHunanXinjiangUzbekistanPakistanAlgeria20+ countries & regions
OEM WEAR PARTS
The part you replace
should fit the process.
INNOVATE supplies original grinding rings, rollers, classifier impellers, turntables and pivot pins. With an in-house casting and machining network, you get traceable fit, practical lead times and a lower total cost than “universal” replacements.
01 / WEAR PART

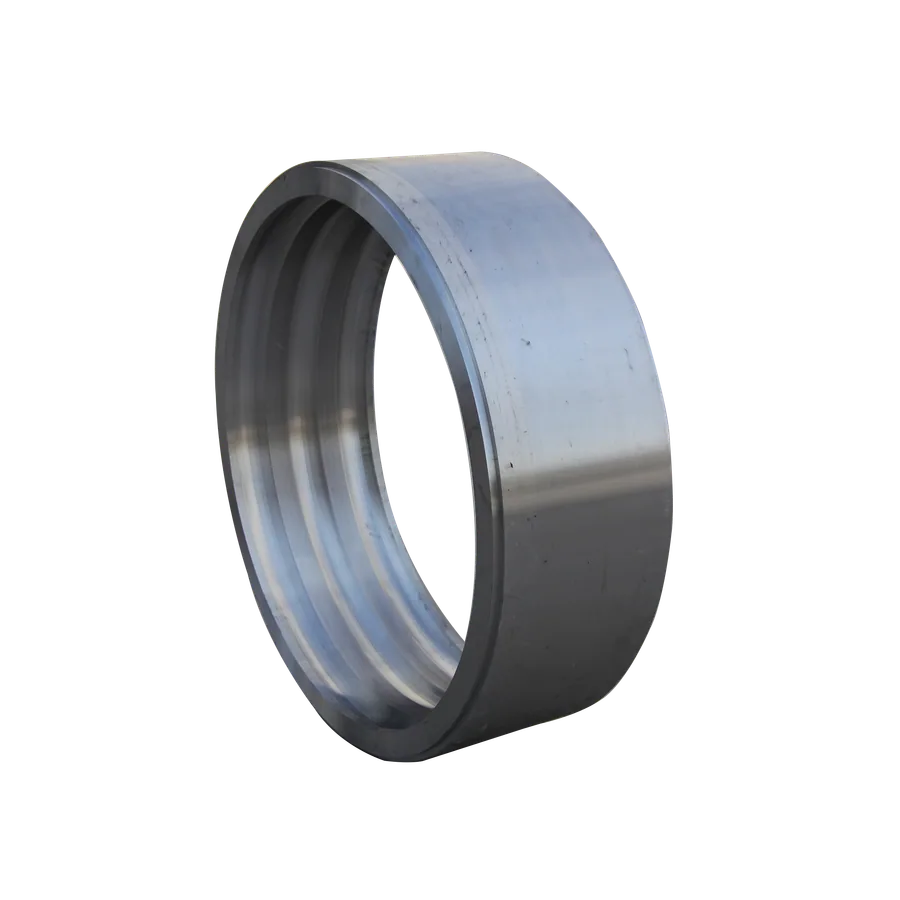

Grinding ring
Forged wear-resistant alloy with controlled raceway geometry.
02 / WEAR PART
Grinding roller
Matched roller set for even pressure and predictable life.
03 / CLASSIFIER
Analyzer impeller
Balanced classifier component for stable fineness control.
04 / CORE PART

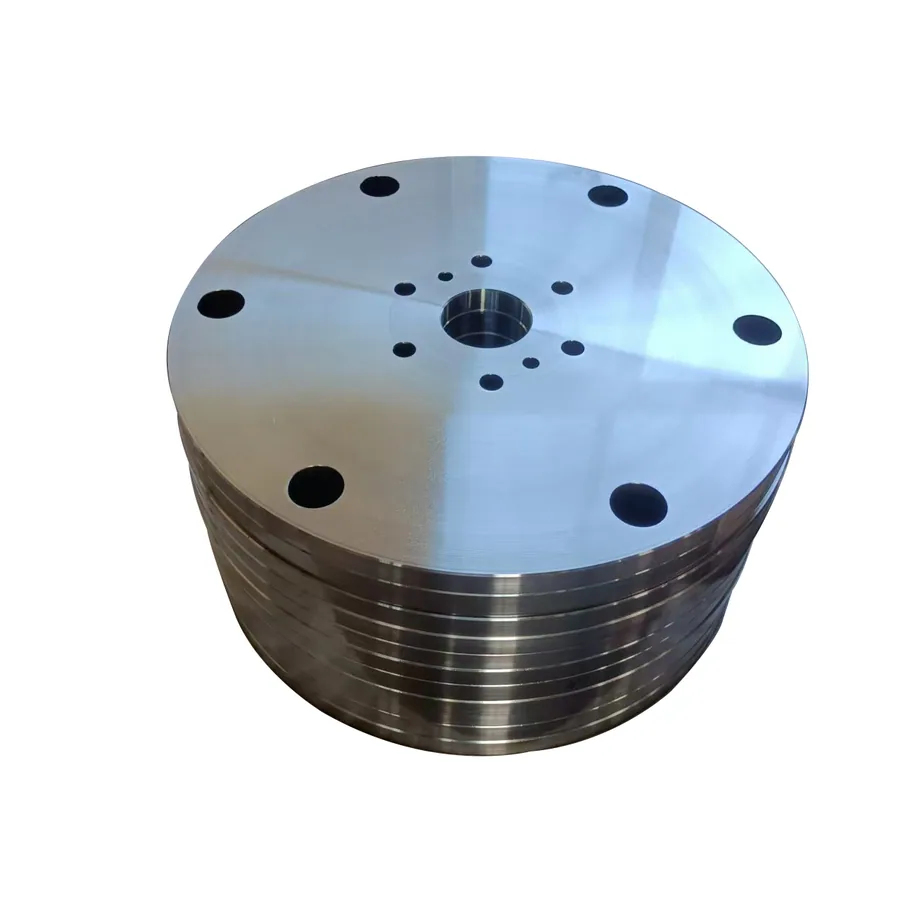

Turntable & pivot pin
Original fit, documented material and direct technical support.
Original fitMade to your HGM model and drawing
Own casting networkMaterial and hardness are traceable
Fair, direct pricingLess markup, practical stocking advice
Request a parts list ↗ SERVICE THAT STAYS WITH YOU
From the first sample
to the next spare part.
Our service promise is built around uptime: understand the material, install the line correctly, train the operators and keep the wear cycle visible.
01
Material testing
Sample analysis, grindability review and target fineness confirmation.
02
Line design
Capacity, layout, air circuit, dust collection and packing recommendations.
03

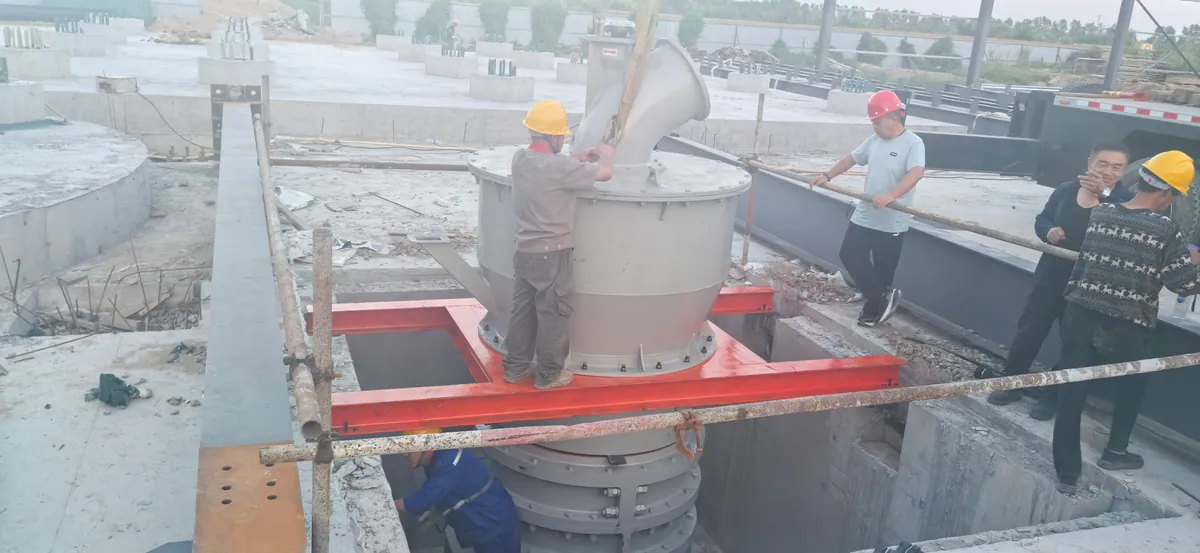

Installation
Remote or on-site guidance for foundations, alignment, wiring and commissioning.
04
Operator training
Start-up, shutdown, classifier tuning, lubrication and routine inspection.
05
Parts planning
Wear-life reminders, original parts and a practical stock list for your line.
06
Responsive support
Technical response through phone, WhatsApp and email for the full lifecycle.
FAQ
Clear answers before
you choose a mill.
Still comparing options? Send us your feed material, target mesh and desired capacity. We will reply with a practical recommendation rather than a generic brochure.
What fineness can the HGM mill produce?+
The standard adjustable range is approximately 150–3000 mesh (106–4.1 μm). Final fineness depends on material properties, classifier settings and process conditions.
Which materials are suitable?+
Calcite, limestone, dolomite, barite, talc, gypsum, mica, graphite, kaolin, bentonite, pyrophyllite, fluorite and 100+ other non-flammable brittle materials below Mohs hardness 6.
Can the mill process calcium carbonate for filler or coating?+
Yes. Calcium carbonate and calcite are common HGM applications. We recommend a material test to confirm whiteness, feed moisture, target D97 and capacity.
What feed size does the mill accept?+
The reference feed size in the HGM guide is ≤20 mm after pre-crushing. A hammer crusher or other suitable pre-crusher can be included in the complete line.
How is product fineness controlled?+
A dynamic centrifugal classifier separates qualified powder from coarse particles. Variable-frequency speed regulation makes adjustment easier and helps keep particle size consistent.
How does the HGM mill control dust?+
The line works under negative pressure with sealed air routing, a pulse bag filter and a silencer. The guide cites dust-removal efficiency of approximately 99–99.5% for the filter system.
How long do grinding rollers and rings last?+
Wear life varies by material, hardness, feed size and operating practice. The product guide references 2–5 years for calcium carbonate and calcite in suitable conditions.
Do you provide installation and commissioning?+
Yes. INNOVATE provides layout guidance, foundation and alignment support, commissioning assistance and full operator training, remotely or on site by arrangement.
Can you design the whole powder production line?+
Yes. The standard line can include feeder, main mill, classifier, pulse bag filter, fan, motor, pipeline, silencer, control cabinet and optional crusher, elevator, silo and packing machine.
How do I choose between HGM60, HGM80, HGM100 and HGM125?+
Start with target output, product fineness and operating hours. Share your material and capacity goal and our engineers will recommend the model, configuration and utilities.
Can I buy original spare parts separately?+
Yes. We supply original rings, rollers, classifier impellers, turntables, pivot pins, filter bags and related components with model matching and technical support.
How quickly can I get a quotation?+
Send the material, desired mesh, capacity, moisture and destination. A technical sales engineer will normally respond with the next information needed for a configured quotation.
START WITH YOUR MATERIAL
Let’s size a line
that earns its keep.
Tell us what you feed, what you need to make and where the line will run. We will come back with a model recommendation, a process route and the questions that matter.
